Shielded Instrument Cable
MIL-C-27072
National Wire & Cable Corp. manufactures a line of shielded instrument cables for MILITARY and UL applications.

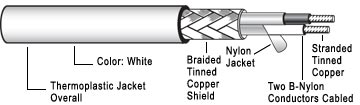

All insulated wires use double-insulated (ie: Nylon-armored over PVC vinyl primary insulation) stranded tinned copper wires per MIL-W-16878/17. (BN) All 19 strand. Shields are full Military 90% min. coverage tinned copper braid.Overall sheath is tough, flexible white PVC compound.
Meets MIL-C-27072 as subcable.**(105°C, 600 volt)
Standard putups: 500 & 1000 ft. on no-deposit reels. Special lengths to order.
**Using type l wire, shielded, with Class B jacket
NOTE: Can be supplied cabled into highly flexible multicables with overall shield and sheath. See our type NTS/NTP cable families.Meets MIL-W-16878/17 UL Style 1004 for 80ºC Service, and UL Style 1005 for 90ºC Service, except where noted.

MIL-C-27072
single conductor white conductor insulation
two conductor black & white or red & blue conductor insulation
three conductor white conductor insulation
four conductor black, white, red, green conductor insulation

Specifications

Military 600 VAC Working
UL Agency: 300 VAC Working
Spark Test Passes 3400 VAC Stress on every wire.
Hipot Test Passes 1500 VAC as finished cable.
Puncture Nominal 5000 VAC as insulated.
Temp Military: working -40°C to +105°C
Cold Bend UL Agency: working -40°C to +80°C
Leakage Cables can be formed into a circle diameter of 6 cable diameters to temperatures as low as -20°C. Recommended flex diameters should be greater than 20 cables diameters for bending at -40°C. 200 megohms/1000 feet min. @ 500 VDC from any conductor to all else in cable.(@25°C)
  PART NUMBERJACKET COLORDELAYS NS FTFINISHED CABLE DIAM. (INCHES)FINISHED CABLE DIAM. (MM)OVERALL FOIL SHIELD WITH DRAINOVERALL BRAIDED SHIELDOVERALL SHIELDEDUNSHIELDEDSHEATH TYPETC BRAID SHIELDGAUGE (AWG)GAUGE OF CONDUCTORGAUGE OF STRANDSINSULATION O.D. (INCHES)JACKET WALL (INCHES)JACKET WALL (MM)MAX RESISTANCE DC AT 20° C PER 1000 FEETMAX RESISTANCE DE AT 20 ° C PER KMNEMA SPEC HP3WIRE PART NUMBERNOM. CABLE DIAM. (INCHES)NOM. CABLE DIAM. (MM)NOM. CABLE O.D. (INCHES)NOM. CABLE O.D. (MM)NOM. CAPACITANCE PER FT WIRE SHIELDNOM. CAPACITANCE PER FT WIRE WIRENOM. DIAM. STRANDED CONDUCTOR (INCHES)NOM. DIAM. STRANDED CONDUCTOR (MM)NOM. FINISHED WIRE DIAM. (INCHES)NOM. FINISHED WIRE DIAM. (MM)NOM. WEIGHT LBS. PER 1000 FEETNOM. WEIGHT KG/KM PER 1000 FEETNON MILITARYNOT CSA CERTIFIEDNOT UL RECOGNIZEDNUMBER OF CONDUCTORSNUMBER OF PAIRSNUMBER OF QUADSNUMBER OF STRANDSNUMBER OF TRIADSOVERALL CONDUCTOR DIAM. (INCHES)OVERALL CONDUCTOR DIAM. (MM)OVERALL DIAM. (INCHES)OVERALL DIAM. (MM)ROHSMILSPEC ONLYFOIL SHIELDMIL SPEC PART NUMBERNON UL1007UL1569 ONLYCIRCULAR MIL AREA10 KVDC .036 WALL (INCHES)10 KVDC .036 WALL (MM)20 KVDC .045 WALL (INCHES)20 KVDC .045 WALL (MM)30 KVDC .055 WALL (INCHES)30 KVDC .055 WALL (MM)40 KVDC .090 WALL (INCHES)40 KVDC .090 WALL (MM)META TITLEMETA DESCRIPTIONMETA KEYWORDS


Enter quantity in feet
NB1938N2SJ           2638          56.931.2    1420.8      19 0.153.81


Enter quantity in feet
NB1936N2SJ           2436          65.535.9    1826.8      19 0.1553.94


Enter quantity in feet
NB1934N2SJ           2234          72.439.7    2131.2      19 0.174.32


Enter quantity in feet
NB1932N2SJ           2032          88.448.5    2740.2      19 0.194.83


Enter quantity in feet
NB1930N2SJ           1830          10155.1    3247.6      19 0.2155.46


Enter quantity in feet
NB1929N2SJ           1629          12359    3552.1      19 0.2355.99
